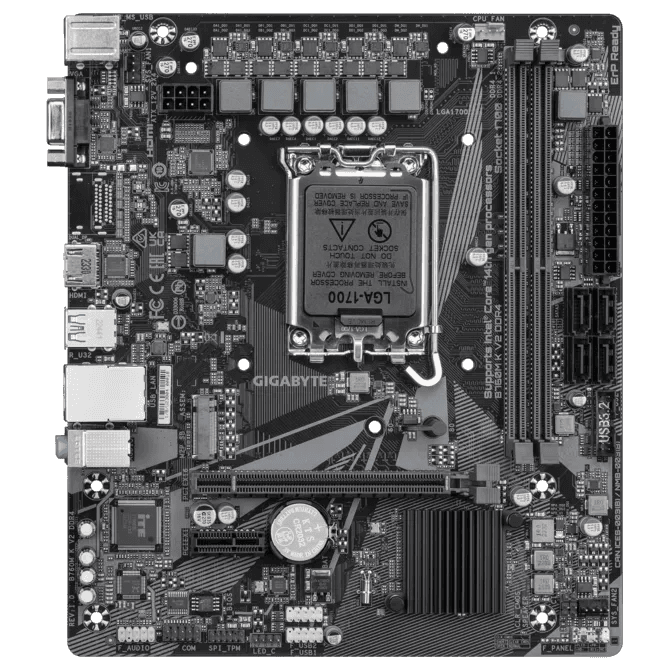

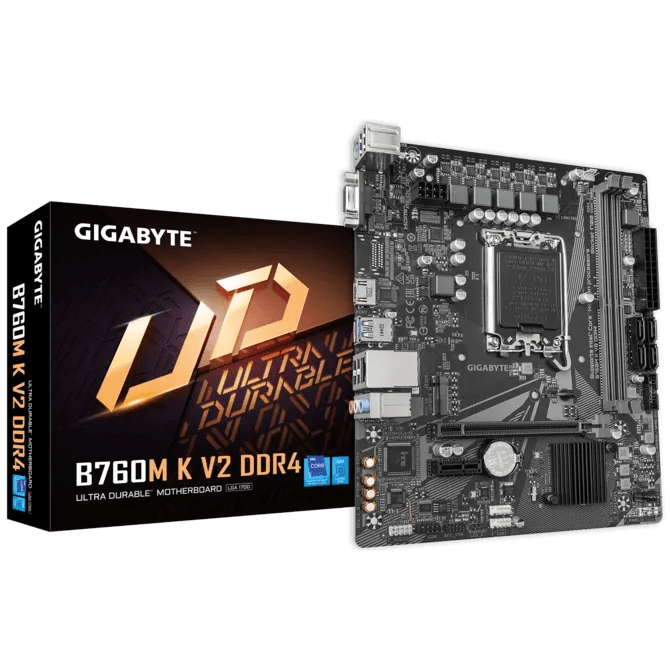

Carte Mere Gigabyte B760M K V2 DDR4
VENDUE UNIQUEMENT EN BUNDLE OU PC CONFIG
Rupture de stock
Ce produit n'est temporairement plus disponible.
SKU : GIGABYTE-B760M-K-V2-DDR4
FICHE TECHNIQUE
| Spécification | Valeur |
|---|---|
| Chipset | Intel B760 Express Chipset |
| C P U | LGA1700 socket: Support for the 14th, 13th, and 12th Generation |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| L A N | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Form Factor | Micro ATX Form Factor; 22.3cm x 19.3cm |
