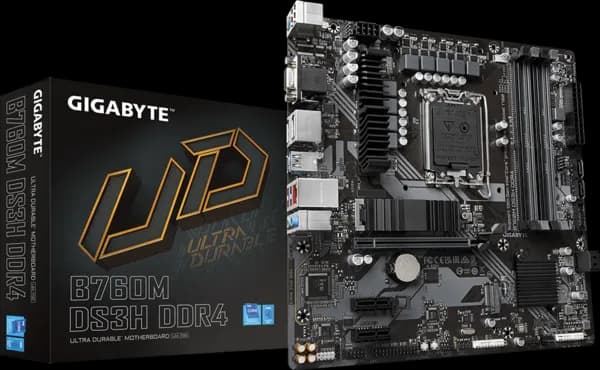

Gigabyte B760M-DS3H DDR4
🔒 Paiement sécurisé à la livraison · Livraison 48h en Algérie
SKU : CARTE-MERE-GIGABYTE-B760M-DS3H-DDR4
FICHE TECHNIQUE
| Spécification | Valeur |
|---|---|
| C P U | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| L A N | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port* 1 x HDMI port* 2 x DisplayPorts* 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
