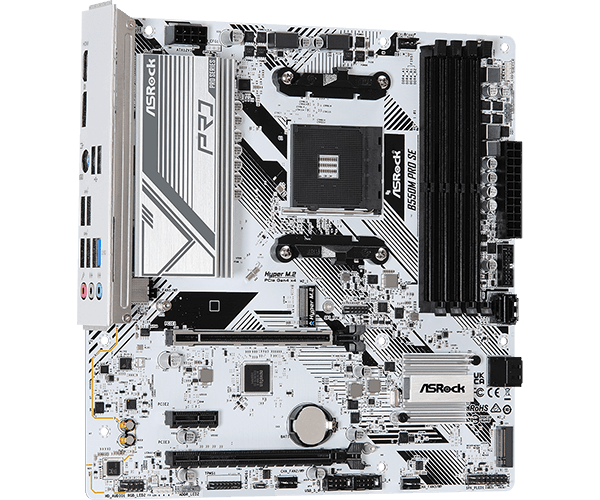

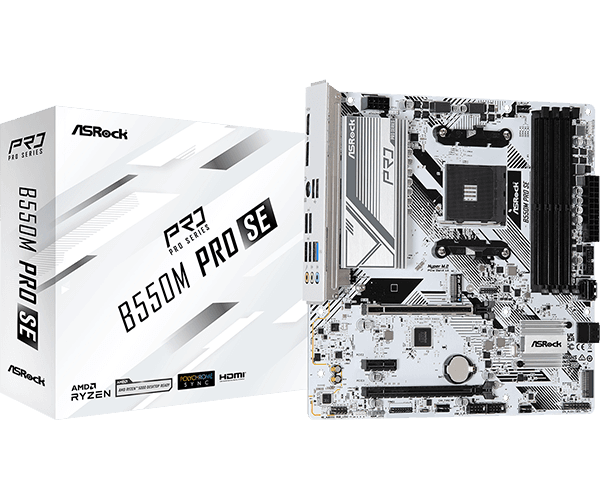

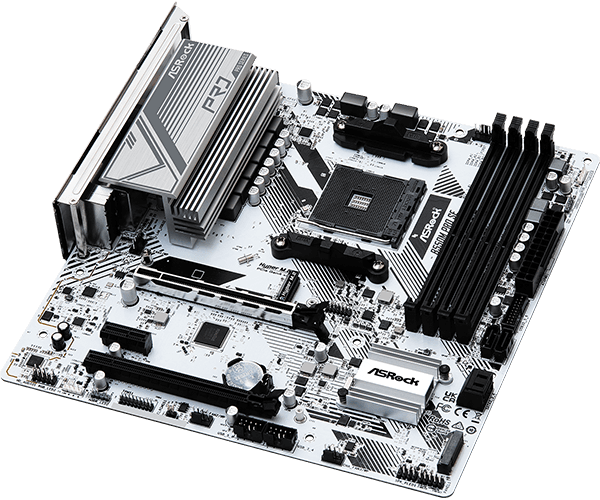

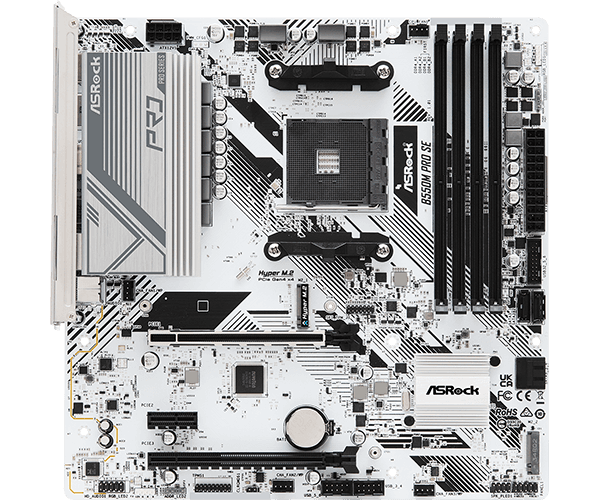

carte mere Asrock B550M Pro SE
🔒 Paiement sécurisé à la livraison · Livraison 48h en Algérie
FICHE TECHNIQUE
| Spécification | Valeur |
|---|---|
| C P U | - Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* |
| Chipset | - AMD PRO565 |
| Memory | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB* - Supports Extreme Memory Profile (XMP) memory modules |
| B I O S | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* (Actual support may vary by CPU) - 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz* - 1 x DisplayPort 1.4, supports HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 5K 120Hz *Picasso supports HDCP 2.2 with HDMI 2.0 Port |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| L A N | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Slots | AMD Ryzen series CPUs (Vermeer and Matisse) - 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Cezanne and Renoir) - 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Picasso) - 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)* - Supports AMD CrossFire™ - 1 x PCIe 3.0 x1 Slot (PCIE2: x1 mode) * Supports NVMe SSD as boot disks |
| Storage | - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks NVMe SSD is not supported with AMD Athlon™ 3000G Processors |
| R A I D | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| U S B | - 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |

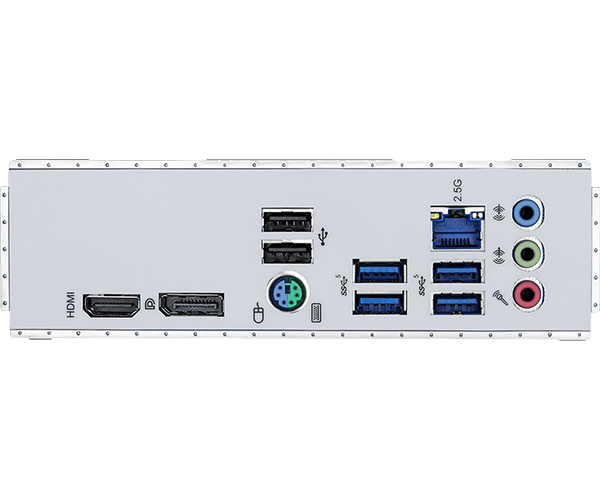

| Rear Panel I/ O | - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port with LED - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software And U E F I | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| O S | - Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
